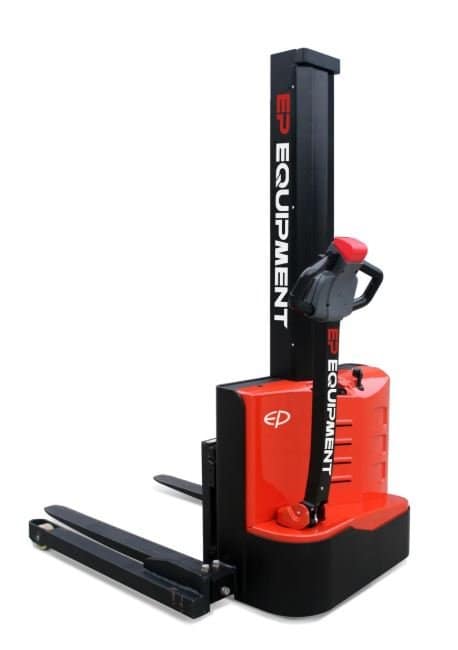

ES10-22MM Electric Stacker 1.0T

Operator type                                                           Pedestrian

Load capacity                                                            1000 kg

Load centre distance                                                 600 mm

Load distance, centre of drive axle to fork                850 mm

Wheelbase                                                                1210 mm

Service weight                                                           543 kg

Axle loading, laden front/rear                                   683/860 kg

Axle loading, unladen front/rear                                420/123 kg

Description

Explore the ES10-22MM

Available in 1000 kg and 1200 kg versions, the ES-MM Series offers efficient stacking with lift heights up to 1.6 m. Thanks to the slim mono mast design, operators benefit from enhanced visibility and safe load handling. Compact dimensions (800 mm width and turning radius under 1.3 m) make these stackers ideal for narrow aisles and backroom operations. Powered by maintenance-free AGM batteries with onboard charger, the ES-MM Series provides cost-effective and reliable daily use .

Application

The ES-MM Series is designed for light-duty applications in retail, workshops, and warehouses where space optimization and simple stacking are required. With excellent maneuverability, they are perfect for moving and lifting pallets in tight storage areas, such as small shops or auxiliary warehouses. The mono mast structure not only improves visibility but also reduces total weight, making the trucks easy to handle and highly efficient for short stacking cycles.
