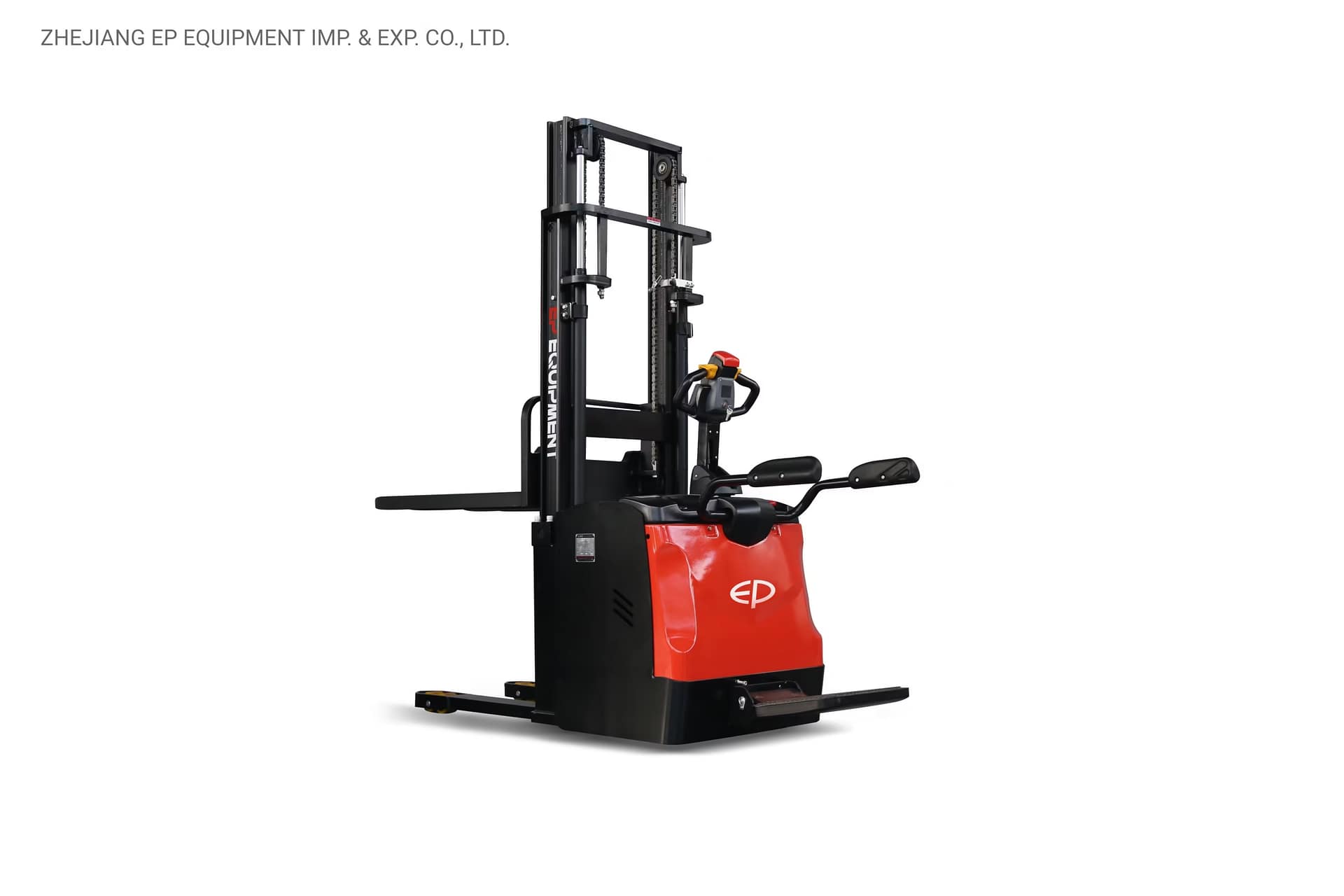

ES16-RS Electric Stacker 1.6T

Operator type                                                           Pedestrian

Load capacity                                                            1600 kg

Load centre distance                                                 600 mm

Load distance, centre of drive axle to fork                671 mm

Wheelbase                                                                 1375 mm

Service weight                                                           1240 kg

Axle loading, laden front/rear                                    960/1880 kg

Axle loading, unladen front/rear                                860/380 kg

Category:

Description

Explore the ES16-RS

With a load capacity of 1600 kg and lift heights up to 5.5 meters, the ES16-RS is designed for medium-to-heavy stacking tasks. Its compact 850 mm chassis and turning radius of 1730 mm provide agility in narrow aisles, while the foldable platform and protection arms ensure comfort and safety for operators. The AC drive system, proportional lift option, and two-speed lowering enhance precision and reliability.

Application

The ES16-RS is suitable for warehouses, distribution centers, and manufacturing facilities where stability and efficiency are essential. Its high-strength chassis and mast options allow it to handle intensive stacking cycles, while electronic steering and dual monitoring systems support safe operation. Optional features such as Li-ion batteries, remote monitoring, and side supports make the ES16-RS adaptable to diverse operational needs.
