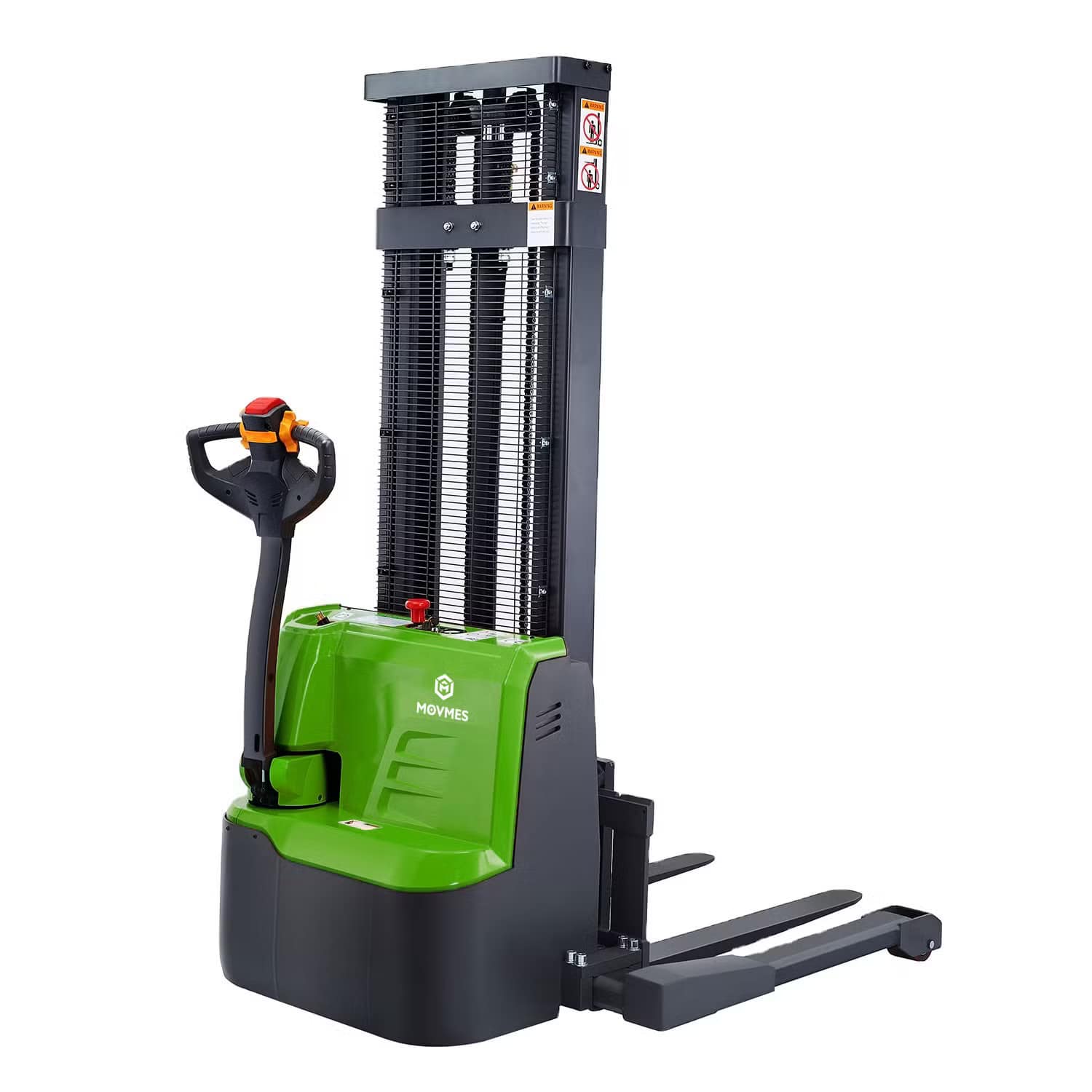

ESR151 Electrice Ride-On Stacker 1.5T

Operator type                                                           Standing

Load capacity                                                            1500 kg

Load centre distance                                                500 mm

Load distance, centre of drive axle to fork               798 mm

Wheelbase                                                                1215 mm

Service weight                                                           670 kg

Axle loading, laden front/rear                                   870/1300 kg

Axle loading, unladen front/rear                               510/160 kg

Category:

Description

Explore the ESR151

With a 1500 kg load capacity and lift heights up to 3.3 m, the ESR151 combines compact maneuverability with the convenience of a foldable ride-on pedal. Equipped with a 24V/105Ah battery and a 24V/15A integrated charger, it ensures easy charging and reliable performance. Safety features include automatic low-speed mode above 720 mm, iron net mast protection, and compliance with GB/T26949.1–2012 stability testing.

Application

The ESR151 is designed for medium-duty stacking in warehouses, retail distribution, and manufacturing sites. Its counterbalance ride-on design makes it suitable for longer travel distances, while the foldable pedal allows switching to pedestrian mode for tight spaces. Thanks to its compact 850 mm chassis width and 1488 mm turning radius, it can operate efficiently in narrow aisles, ensuring flexibility in diverse warehouse layouts.
