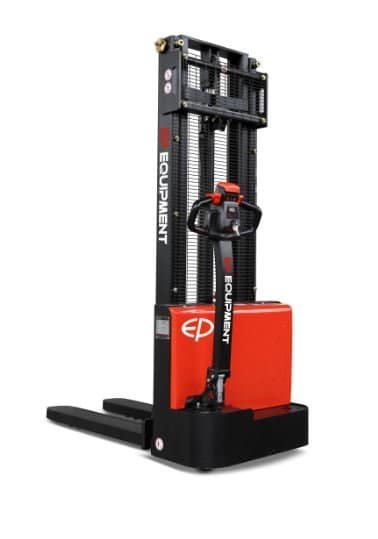

EST122 Pedestrian Stacker 1.2T

Operator type                                                       Pedestrian

Load capacity                                                        1200 kg

Load centre distance                                             600 mm

Load distance, centre of drive axle to fork            798 mm

Wheelbase                                                            1212 mm

Service weight                                                       590 kg

Axle loading, laden front/rear                               650/1140 kg

Axle loading, unladen front/rear                           450/140 kg

Description

Explore the EST122

With a load capacity of 1200 kg and a lift height of up to 2430 mm, the EST122 offers reliable stacking performance for light-duty applications. Its rigid frame, lateral drive, and compact design provide excellent stability and maneuverability in narrow aisles. Powered by a 24V/85Ah AGM battery with integrated charger, it ensures simple operation and easy maintenance.

Application

The EST122 is ideal for warehouses, shops, and distribution centers handling low-to-medium intensity stacking tasks. Thanks to its compact size and small turning radius (1458 mm), it navigates easily in confined spaces. Equipped with a crawl speed button for precise control and an ergonomic tiller design, it supports operators in safe and comfortable material handling.
