RSC101 Electric Stacker 1000 kg 48 V Lead Acid

Operator type Standing                                                                    Pedestrian

Load capacity                                                                                   1000 kg

Load centre distance                                                                        500 mm

Load distance, centre of drive axle to fork                                       154 mm

Wheelbase                                                                                        1020 mm

Service weight                                                                                  1620 kg

Axle loading, laden front/rear                                                           2380/240 kg

Axle loading, unladen front/rear                                                       670/950 kg

Category:

Description

Explore the RSC101

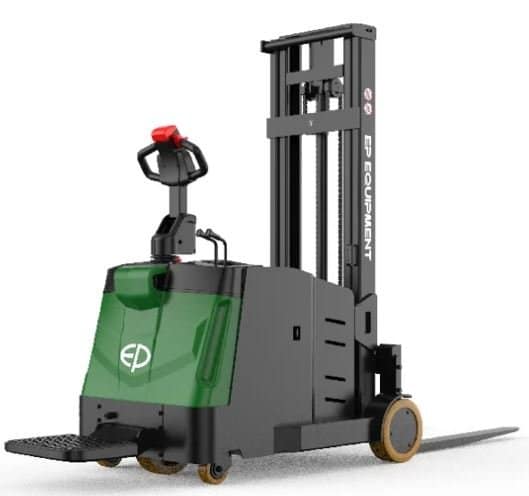

The RSC101 is a compact 1-ton electric counterbalance stacker designed for maximum flexibility. Featuring sensitive mast tilting and high ground clearance, it handles closed pallets and uneven terrain with ease. With its foldable pedal and compact size, the RSC101 offers versatile operation, combining the efficiency of a ride-on truck with the precision of a pedestrian stacker.

Application

The RSC101 is engineered for versatile material handling in warehouses, loading docks, and retail backrooms. Its counterbalance design eliminates straddle legs, ensuring full compatibility with all pallet types, including closed-bottom pallets. With high ground clearance, it easily navigates ramps, dock levelers, and uneven surfaces. The compact frame and foldable pedal allow operators to seamlessly switch between efficient ride-on transport and precise pedestrian maneuvering in narrow aisles and tight spaces.
