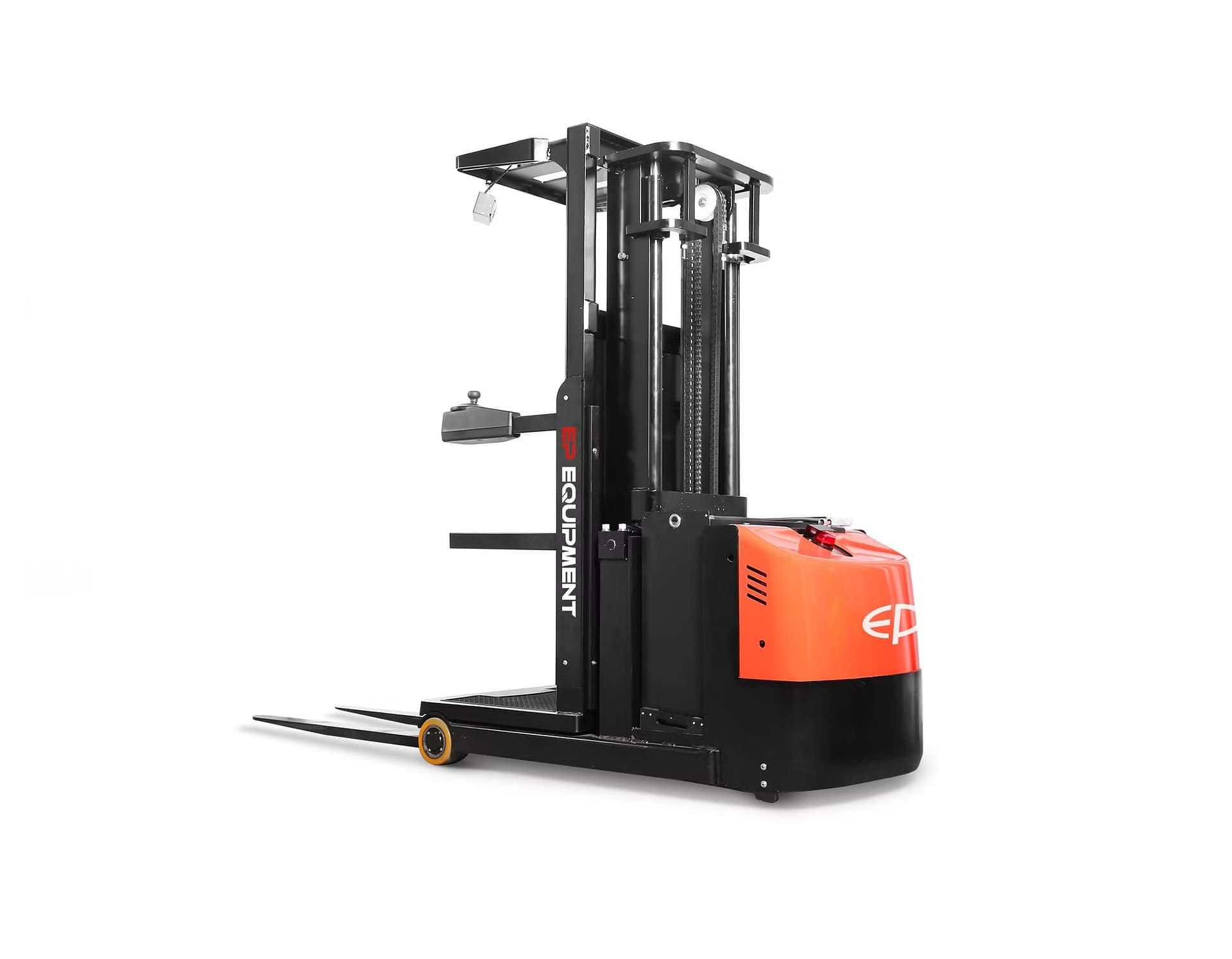

jx2 4 medium level order picker 1.0t

JX2-3 Medium Level Order Picker 0.7T

Operator type                                                                       Order-picker

Load capacity                                                                        700 kg

Load centre distance                                                             600 mm

Load distance, centre of drive axle to fork                           140 mm

Wheelbase                                                                            1330 mm

Service weight                                                                       1780|1794 kg

Axle loading, laden front/rear                                                1753/592|1758/602 kg

Axle loading, unladen front/rear                                           707/1072|712/1082 kg

For Download Brochure Copy Past This Link on Google

https://cdn.ep-portal.net/datasheets/JX2-3/JX2-3-en.pdf

Category:

Description

Explore the JX2-3

With a 700 kg load capacity and lift heights up to 2.9 meters (picking height 5.1 m), the JX2-3 offers stability, precision, and maneuverability. Its compact 800 mm chassis and turning radius of 1515 mm ensure smooth operation in narrow aisles. Powered by a 24V/360Ah battery and 3 kW lift motor, it provides reliable runtime and strong performance.

Application

The JX2-3 is ideal for medium-level order picking in e-commerce, retail, and warehouse operations. Its elevated stand height (up to 3.0 m) ensures easy access to racking, while proportional lifting and lowering guarantee accuracy and care when handling goods. With a wide field of view, stable mast design, and optional safety add-ons such as warning lamps or buzzers, it adapts to diverse warehouse environments.
